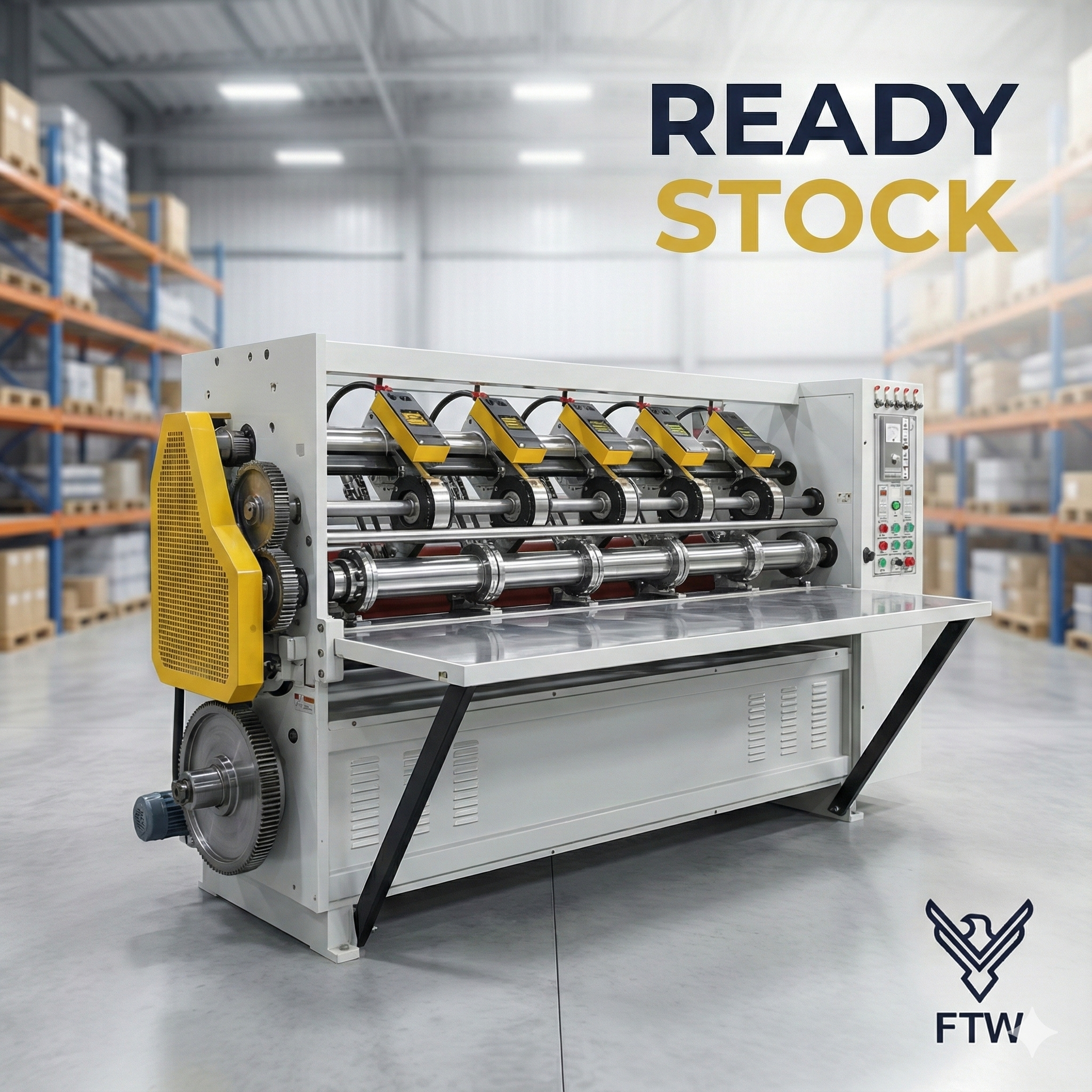

Thin Blade
Characteristics:
Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
Slitting Part: adopt high-quality tungsten steel blade, sharp and long work-life, slice more tidy, non- pressing, and non-burr.
Scoring Part: Adopt 5 points scoring, Scoring distance in phase adjust and easy to bend the carton sheet.
Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
Adopt imported electric elements, dependable performance.
Technical Specifications:
Model | 2000 | 2300 | 2500 | 2700 | 3000 |
Power(KW) | 4 | 4 | 4 | 4 | 5.5 |
Max slitting width (mm) | 1800 | 2100 | 2300 | 2500 | 2800 |
Scoring height (mm) | 0-10 | 0-10 | 0-10 | 0-12 | 0-12 |
Blade (mm) | Φ200*122*1.2 | Φ200*122*1.2 | Φ200*122*1.2 | Φ200*122*1.2 | Φ200*122*1.2 |
Blade & Scoring Composed Type | Four blade Six Scoring/ Five Blades Eight scoring | ||||
