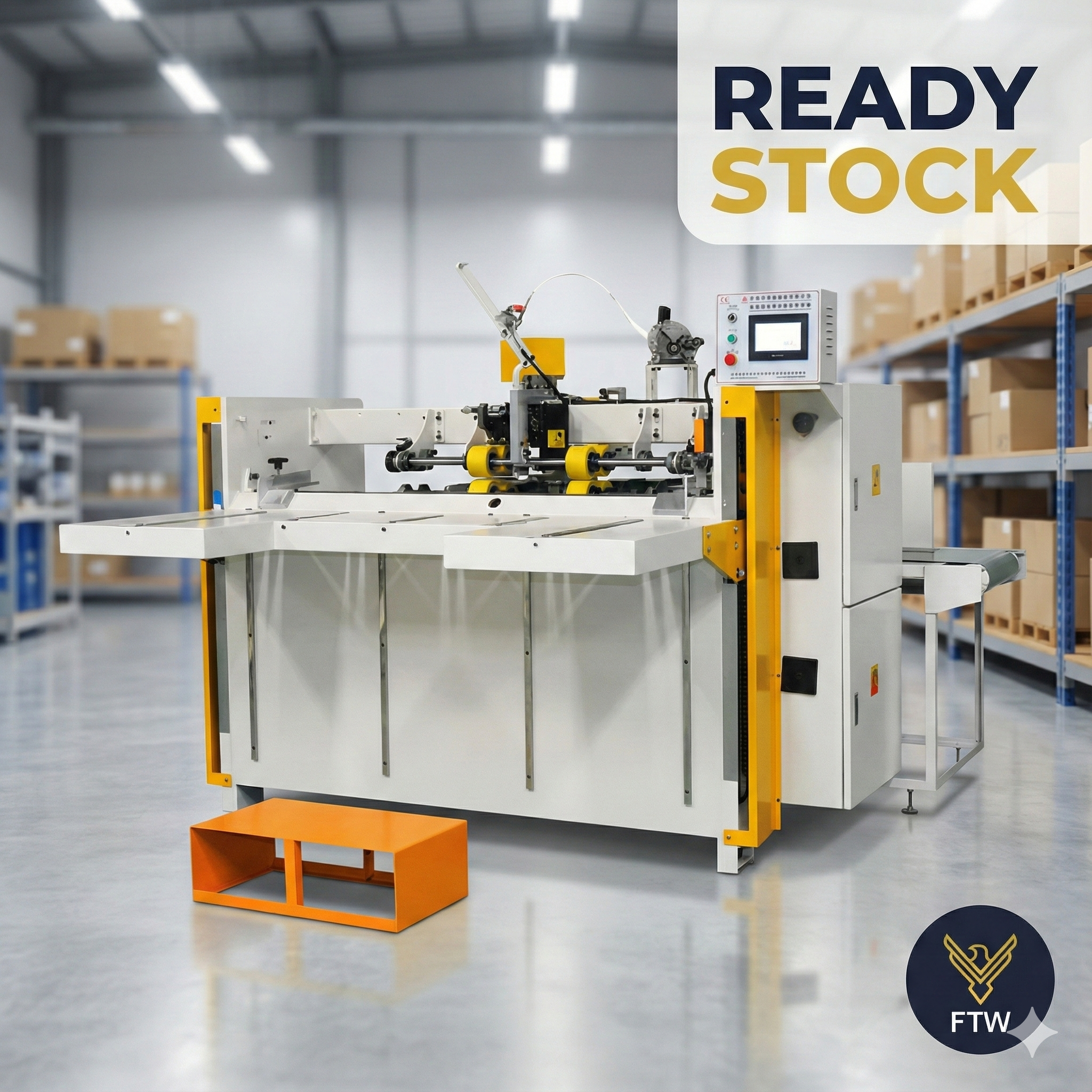

Semi Auto Stitcher
Characteristics:
Fast change size within one minute
Easy operation, experience is not required
Single nail, double nails or strengthened nail can be nailed
Touch screen operation
Adopting servo system
Mechanical speed: 500 nails/minute
Suitable to stitch cartons with/without covers
Nail pitch can be set freely on the touch screen
Max. slotted nail length: 380mm
Technical Specifications:
Max. sheet Size (A+ B) *2 | 2800 mm |
Min. sheet size (A + B) *2 | 600 mm |
Max. sheet size (C+D+C) | 1515mm |
Min. sheet size (C+D+C) | 300 mm |
Height of sheet feeding | 900 mm |
Driven motor | 6 HP |
Mechamcal length | 2800 mm |
Mechanical Width | 2600 mm |
Machine weight | 2000 kg |
Machine speed | 500 nails/minute |
Nail pitch (small—big) | 30-120 mm |
Nail number | 1 ~ 99 nails |
